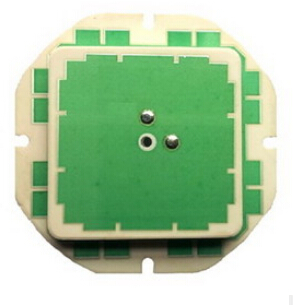

GPS built in dielectric Antenna
Product Name : GPS built in dielectric Antenna
Product ID : LW-GPS-184
Frequency : 1575.42M
Amplifier Antenna gain : 10dBi
Antenna polarization : RHCP
Antenna size : 18×18×4mm
Directions
Model : BY-GPS-184-SMD
（i）Dielectric Antenna
Nominal Frequency（MHz）：1575.42±3
Centeri frequency MHZ (with adhesive tape on square ground plane ) :CF±3.0
-10dB Bandwidth（MHz）min：6.0
Return loss at center frequency dB type:-20.0
Gain(Zenith 9090°) dBi type : 2.0
Impedance（Ω）：50
Axial Ratio dB max: 3.0
Polarization：RHCP
Frequency Temperature Coefficient : 20ppm/deg.℃ max
（ii）Mechanical
Weight （gram）＜10
Size （mm）：18×18×4
（iii）Environmental
Working Temp：-40℃~+85℃
Storage Temp：-45℃~+90℃
Vibration：Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity：Humidity95%~100%RH
