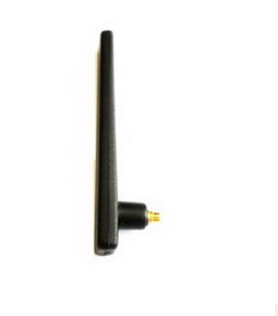

GSM 900-1800M rubber SMA antenna 0dBd
Product Name : GSM 900-1800M rubber SMA antenna 0dBd
Product ID : LW-GSM-05
Frequency : 850-1900/900-1800MHz
Antenna gain : 2.15dBi
Connector : SMA male or can be customized
Output power : 50W
Antenna dimension : 55mm
Directions
Frequency（MHz）：850/900/1800/1900
Bandwidth（MHz）：70/180
VSWR ≤ 2
Gain（dBi）：2.15
Max Input power（W）：50
Input Impedance（Ω）：50
Polarization：Vertical
Antenna Length（mm）：55
Connector：MCX/MMCX etc.
Storage Temperature：-30℃ to+75℃
Operating Temperature ：-30℃ to+75℃
