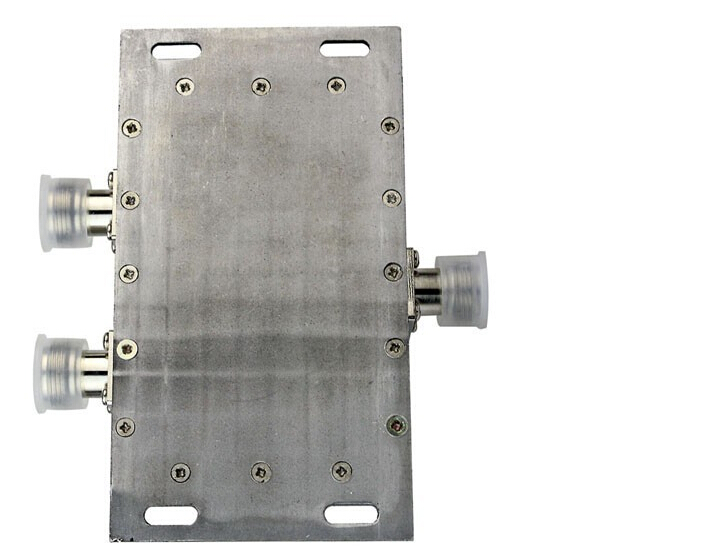

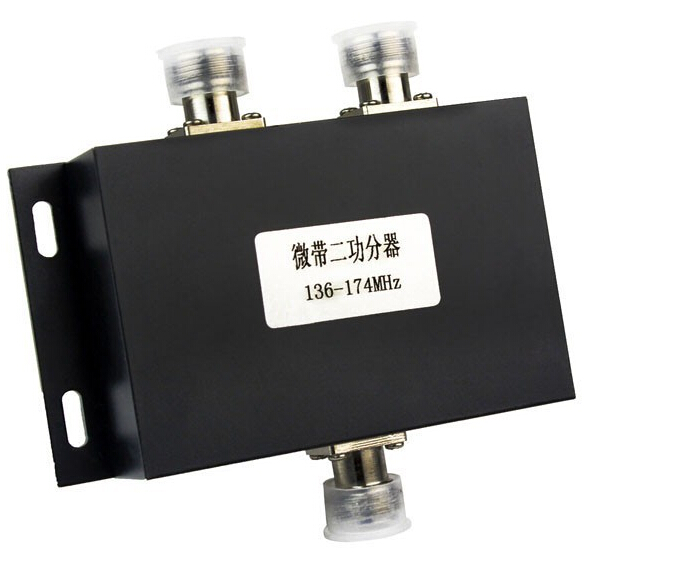

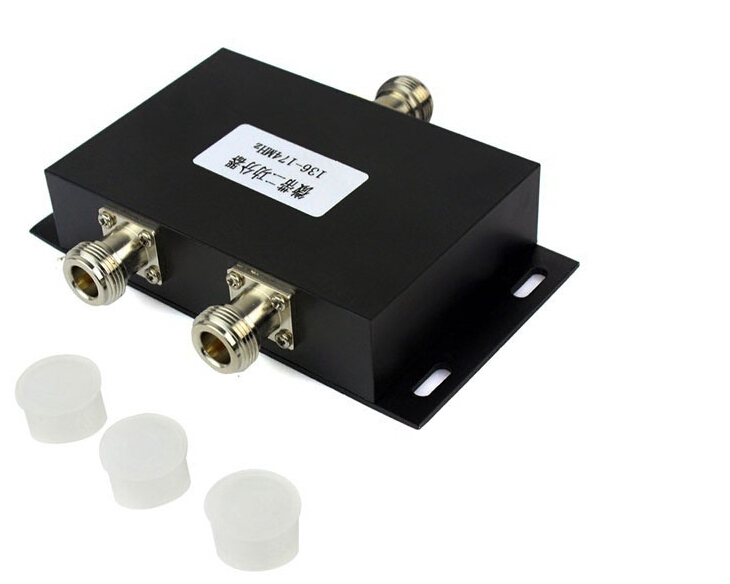

Product Name : Two way radio VHF power divider N female one in two spliter
Product ID : LW-PSD-168
Frequency : VHF136-174MHz
Power : 100W
Connector : N-female
Dimention : 12.3x2.6x10.3cm
Directions

  1. Frequency:VHF136-174MHz

  2. Isolation:> =18dB

  3. Insert loss:<=3.4dB

  4. Distributor loss:3d

  5. Aspects balance:<= 5°

  6. Wave:<=±0.2dB

  7. VSWR:<=1.3dB

  8. Power:100W

  9. Imdedance:50

  10. Work tim:-25?+ 55°C

  11. Material:Alluminum

  12. Connector:N-F

  13. Dimension:12.3x2.6x10.3cm
