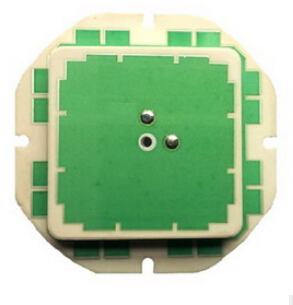

GPS car navigator ceramic antenna 1575M

GPS active car antenna amplifier 28dBi
GPS active car antenna amplifier 28dBi
GPS active car antenna amplifier 28dBi

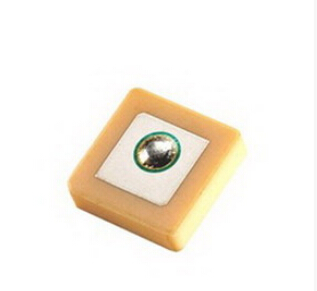

Product Name : GPS car navigator ceramic antenna 1575M
Product ID : LW-GPS-104
Frequency : 1575.42M
Amplifier Antenna gain : 2dBi
Antenna polarization : RHCP
Antenna size : 10×10×4mm
Directions

(i)Dielectric Antenna
Center Frequency(MHz):1575.42±3
VSWR:1.5:1
Bandwidth(MHz):15 Min
Impedance(Ω):50
Peak Gain >2dBi Based on 7cm×7cm ground plane
Gain Coverage >-4dBi at –90°< 0 <+90°(over 75% Volume)
Polarization:RHCP
Power Handling(W):1
(ii)Mechanical
Weight(gram)<8
Size(mm):10×10×4
(iii)Environmental
Working Temp:-40℃~+85℃
Storage Temp:-45℃~+90℃
Vibration:Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity:Humidity95%~100%RH
