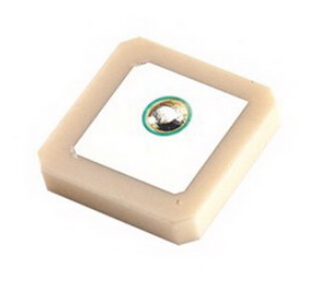

GPS built in patch ntenna

Product Name : GPS built in patch ntenna

Product ID : LW-GPS-204

Frequency : 1575.42M

Amplifier Antenna gain : 4dBi

Antenna polarization : RHCP

Antenna size : 20×20×4mm

Directions

（i）Dielectric Antenna
Center Frequency（MHz）：1575.42±3
VSWR：1.5:1
Bandwidth（MHz）：15 Min
Impedance（Ω）：50
Peak Gain＞4dBi Based on 7cm×7cm ground plane
Gain Coverage＞-4dBi at –90°＜0 ＜+90°(over 75% Volume)
Polarization：RHCP
Power Handling（W）：1
（ii）Mechanical
Weight（gram）＜10
Size（mm）：20×20×4
（iii）Environmental
Working Temp：-40℃~+85℃
Storage Temp：-45℃~+90℃
Vibration：Sine sweep1g(0-p)10~50~10Hz each axis
Humidity：Humidity95%~100%RH
