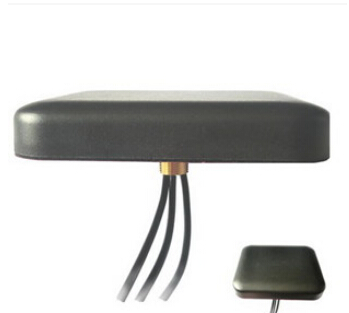

BY-GPS/Wifi/Iridium-01
( I ) Product Overview

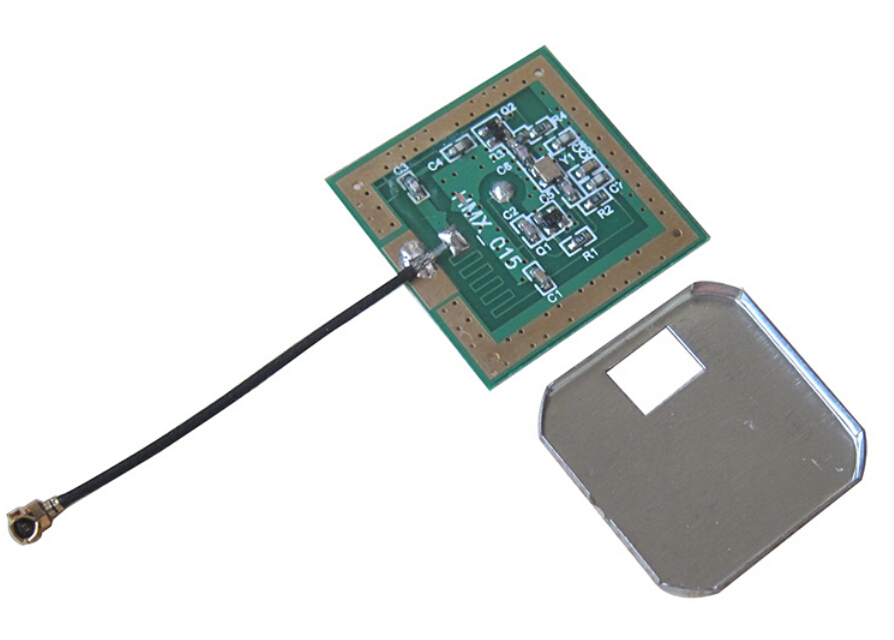

(i)GPS Antenna
Center Frequency(MHz):1575.42±3
VSWR:1.5:1
Bandwidth(MHz):±5
Impedance(Ω):50
Peak Gain>3dBi Based on 7cm×7cm ground plane
Gain Coverage>-4dBi at –90°<0 <+90°(over 75% Volume)
Polarization:RHCP
LNA Gain(Without Cable):28 dBi Typical
Noise Figure(dB):1.5
Filter Out Band Attenuation (f0=1575.42 MHz)
7dB Min f0+/-20MHz ;
20dB Min f0+/-50MHz;
30dB Min f0+/-100MHz
VSWR<2.0
DC Voltage(V):2.7/3.0/3.3/5.0/3.0 to 5.0 etc.
DC Current(mA):11 Max
(ii)WIFI Antenna
Frequency(MHz):2400-2500
VSWR ≤1.5
Gain(dBi):2.15
Impedance(Ω):50
Polarization:Vertical
(iii)Iridium Antenna
Frequency(MHz):1616-1626
Impedance(Ω):50
Peak Gain>3dBi Based on 7cm×7cm ground plane
Gain Coverage>-4dBi at –90°<0 <+90°(over 75% Volume)
( II )Mechanical
Weight(gram)<240
Size(mm):107×86x17.5
Cable GPS(m):RG174 2,5 etc.
wifi(m):RG174 2,5 etc.
Iridium(m):RG174 2,5 etc.
Connector GPS:SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
wifi:SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
Iridium:SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
Mounting:Screw(Hole/Roof)
Housing:Black
( III )Environmental
Working Temp:-40℃~+85℃
Storage Temp:-45℃~+100℃
Vibration:Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity:Humidity95%~100%RH
Weatherproof:100%Waterproof
