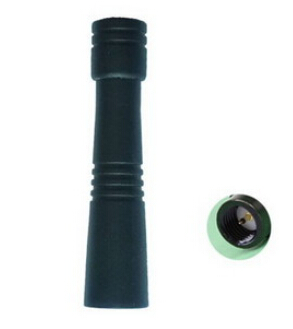

(i)Antenna Center Frequency(MHz):1575.42±3 VSWR:1.5:1 Bandwidth(MHz):±5 Impedance (Ω):50 Polarization:Linear Pattern:Omni-Directional (ii)LNA/Filter LNA Gain (Without cable) :28 dBi Typical Noise Figure(dB):1.5 Filter Out Band Attenuation (f0=1575.42 MHz) 7dB Min f0+/-20MHz ; 20dB Min f0+/-50MHz; 30dB Min f0+/-100MHz VSWR <2.0 DC Voltage(V):2.7 to 5.0 DC Current(mA):10 Max (iii)Mechanical Weight(gram)<30 Antenna Length (mm):63 Max diameter(mm):14 Min diameter(mm):10 Connector:SMA male Housing:Black (iv)Environmental Working Temp:-40℃~+85℃ Storage Temp:-45℃~+100℃ Vibration:Sine sweep 1g(0-p)10~50~10Hz each axis Humidity:Humidity95%~100%RH Weatherproof:100%Waterproof
